WDS - MDT
En lient avec [Active Directory
Troubleshooting
Installation mode core : https://woshub.com/windows-server-core-install-active-directory-domain-controller/
First
Commande :
Get-Module -ListAvailable | Import-module
Erreur :
WARNING: The names of some imported commands from the module 'DeliveryOptimization' include unapproved verbs that might
make them less discoverable. To find the commands with unapproved verbs, run the Import-Module command again with the
Verbose parameter. For a list of approved verbs, type Get-Verb.
Import-Module : The specified module 'Hyper-V' was not loaded because no valid module file was found in any module
directory.
At C:\Windows\system32\WindowsPowerShell\v1.0\Modules\VMDirectStorage\VMDirectStorage.psm1:7 char:1
+ Import-Module Hyper-V
+ ~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : ResourceUnavailable: (Hyper-V:String) [Import-Module], FileNotFoundException
+ FullyQualifiedErrorId : Modules_ModuleNotFound,Microsoft.PowerShell.Commands.ImportModuleCommand
Import-Module : The specified module 'Hyper-V' was not loaded because no valid module file was found in any module
directory.
At C:\Windows\system32\WindowsPowerShell\v1.0\Modules\VMDirectStorage\VMDirectStorage.psm1:7 char:1
+ Import-Module Hyper-V
+ ~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : ResourceUnavailable: (Hyper-V:String) [Import-Module], FileNotFoundException
+ FullyQualifiedErrorId : Modules_ModuleNotFound,Microsoft.PowerShell.Commands.ImportModuleCommand
Résolution :
- Relancer la commande, pas grave si vous avez un petit warning qui apparait
- Essayer d'ajouter le Path : https://www.sharepointdiary.com/2020/01/import-module-specified-module-not-loaded-because-no-valid-module-file-found-in-any-module-directory.html
2)
Commande :
PS C:\Users\Administrator> add-computer -domainname vlne.lan
Erreur :
cmdlet Add-Computer at command pipeline position 1
Supply values for the following parameters:
Credential
add-computer : Computer 'sadw02' failed to join domain 'vlne.lan' from its current workgroup 'WORKGROUP' with
following error message: The specified domain either does not exist or could not be contacted.
At line:1 char:1
+ add-computer -domainname vlne.lan
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : OperationStopped: (sadw02:String) [Add-Computer], InvalidOperationException
+ FullyQualifiedErrorId : FailToJoinDomainFromWorkgroup,Microsoft.PowerShell.Commands.AddComputerCommand
+
Résolution :
- Remettez vous sur le même réseau (NAT)
- Essayer de ping le domaine
- Bien vérifier que vous avez ajouté le DNS dans la config IP
- La commande
nslookup vlne.landoit fonctionner
3)
Commande :
Ajout controleur de domaine :
Install-ADDSDomainController -DomainName vlne.lan -InstallDns:$true -NoGlobalCatalog:$false -NoRebootOnCompletion:$true -SafeModeAdministratorPassword (ConvertTo-SecureString 'Yvettedu95' -AsPlainText -Force) -Credential (get-credential VLNE\Administrator) -verbose
Erreur :
Install-ADDSDomainController : Verification of user credential permissions failed. An Active Directory domain
controller for the domain "vlne.lan" could not be contacted.
Ensure that you supplied the correct DNS domain name.
At line:1 char:1
+ Install-ADDSDomainController -DomainName vlne.lan -InstallDns:$true - ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : NotSpecified: (:) [Install-ADDSDomainController], TestFailedException
+ FullyQualifiedErrorId : Test.VerifyUserCredentialPermissions.DCPromo.General.25,Microsoft.DirectoryServices.Depl
oyment.PowerShell.Commands.InstallADDSDomainControllerCommand
Alors que le domaine existe bien et est bon.
Verification of user credential permissions failed. An Active Directory domain controller for the domain "vlne.lan" ...
Résolution :
-
Avant de promouvoir un nouveau contrôleur de domaine, assurez-vous que votre domaine Active Directory fonctionne correctement. Vérifiez soigneusement les erreurs sur chaque DC renvoyées par
Dcdiag /vet vérifiez la réplication AD (repadmin /showrepletrepadmin /replsum). -
Essayer de clear le DNS via
sconfiget re-ajouter le DNS -
Désactiver IPV6

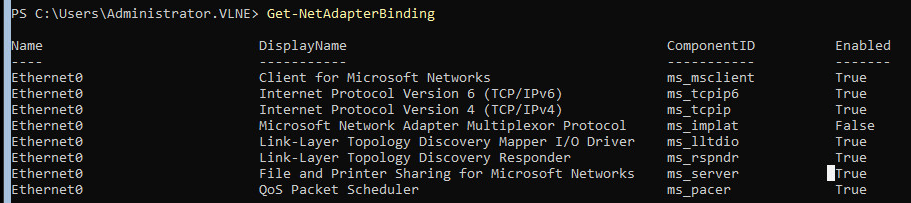

Get-NetAdapterBinding (voir les adaptateurs)

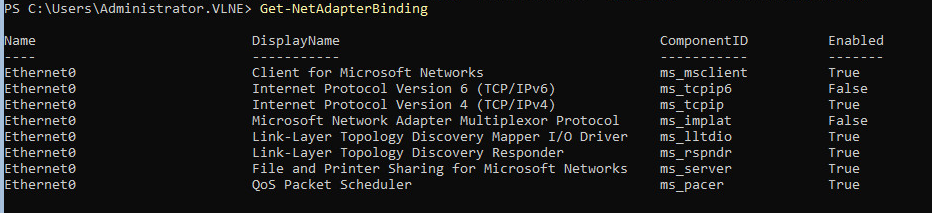

Désactivation IPV6 :
Disable-NetAdapterBinding –InterfaceAlias “Ethernet0” –ComponentID ms_tcpip6
VERBOSE: Active Directory Domain Services Setup
VERBOSE: Validating environment and parameters...
WARNING: Windows Server 2022 domain controllers have a default for the security setting named "Allow cryptography
algorithms compatible with Windows NT 4.0" that prevents weaker cryptography algorithms when establishing security
channel sessions.
For more information about this setting, see Knowledge Base article 942564
(http://go.microsoft.com/fwlink/?LinkId=104751).
WARNING: A delegation for this DNS server cannot be created because the authoritative parent zone cannot be found or it does not run Windows DNS server. If you are integrating with an existing DNS infrastructure, you should manually create a delegation to this DNS server in the parent zone to ensure reliable name resolution from outside the domain "vlne.lan". Otherwise, no action is required. VERBOSE: ---------------------------------------- VERBOSE: The following actions will be performed: VERBOSE: Configure this server as an additional Active Directory domain controller for the domain "vlne.lan". Site: Additional Options: Read-only domain controller: "No" Global catalog: Yes DNS Server: Yes Update DNS Delegation: No Source DC: sadw01.vlne.lan Database folder: C:\Windows\NTDS Log file folder: C:\Windows\NTDS SYSVOL folder: C:\Windows\SYSVOL The DNS Server service will be installed on this computer. The DNS Server service will be configured on this computer. This computer will be configured to use this DNS server as its preferred DNS server.
VERBOSE: ----------------------------------------
VERBOSE: Active Directory Domain Services Setup
VERBOSE: Validating environment and parameters...
WARNING: Windows Server 2022 domain controllers have a default for the security setting named "Allow cryptography
algorithms compatible with Windows NT 4.0" that prevents weaker cryptography algorithms when establishing security
channel sessions.
For more information about this setting, see Knowledge Base article 942564
(http://go.microsoft.com/fwlink/?LinkId=104751).
WARNING: A delegation for this DNS server cannot be created because the authoritative parent zone cannot be found or it does not run Windows DNS server. If you are integrating with an existing DNS infrastructure, you should manually create a delegation to this DNS server in the parent zone to ensure reliable name resolution from outside the domain "vlne.lan". Otherwise, no action is required. VERBOSE: ---------------------------------------- VERBOSE: The following actions will be performed: VERBOSE: Configure this server as an additional Active Directory domain controller for the domain "vlne.lan". Site: Additional Options: Read-only domain controller: "No" Global catalog: Yes DNS Server: Yes Update DNS Delegation: No Source DC: sadw01.vlne.lan Database folder: C:\Windows\NTDS Log file folder: C:\Windows\NTDS
SYSVOL folder: C:\Windows\SYSVOL
The DNS Server service will be installed on this computer.
The DNS Server service will be configured on this computer.
This computer will be configured to use this DNS server as its preferred DNS server.
VERBOSE: ----------------------------------------
VERBOSE: Press CTRL-C to: Cancel
VERBOSE: Active Directory Domain Services is now installed on this computer for the domain "vlne.lan".
This Active Directory domain controller is assigned to the site "Default-First-Site-Name". You can manage sites with
the Active Directory Sites and Services administrative tool.
Message Context RebootRequired Status
------- ------- -------------- ------
You must restart this computer to complete the operation... DCPromo.General.4 True Success
